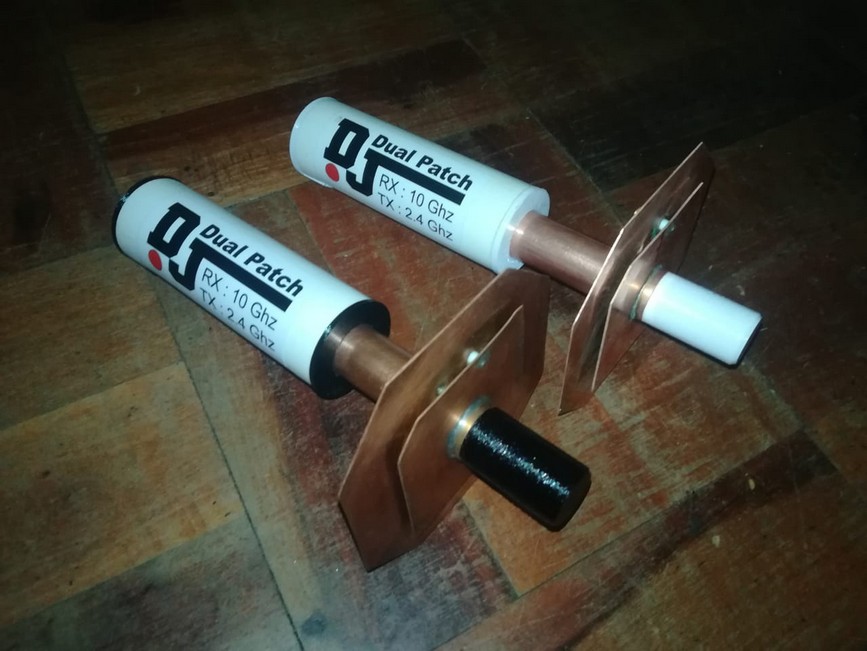

DJ-Dual Patch








DJ Dual Patch

Ready to use plug and play Dual Patch antenna. Ready built and tuned for transmiting .
RX 10.4 Ghz - Standard LNB
TX 2.4 Ghz - DJ LHCP Patch

Receive Specifications:

L.O. Frequency :  Low Band 9.75 Ghz
                        Hi Band 10.6 Ghz
Output Frequency Range : 720 - 2150Mhz
Pol Switching Voltage : Ver @ 10 - 14 VDC
                                     Hor @ 16 - 20 VDC
Output Connector : F-Type Female 75 ohms

Transmit Specifications:

Transmit Frequency : 2400.300 Mhz
Band Width : 100 Mhz
Return Loss @2400.300 Mhz : -30 dB or beter
SWR @ 2400.300 Mhz : 1:03 or beter
Impedance @ 2400.300 Mhz : 50 Ohms ± 5%
Polarisation : LHCP
