SDR Receiver

Hennie Van Rensburg ZS6EY · 7 February 2024
Category
Receivers
Version
—
Status
—
Difficulty
—
Built by members
0

About this build

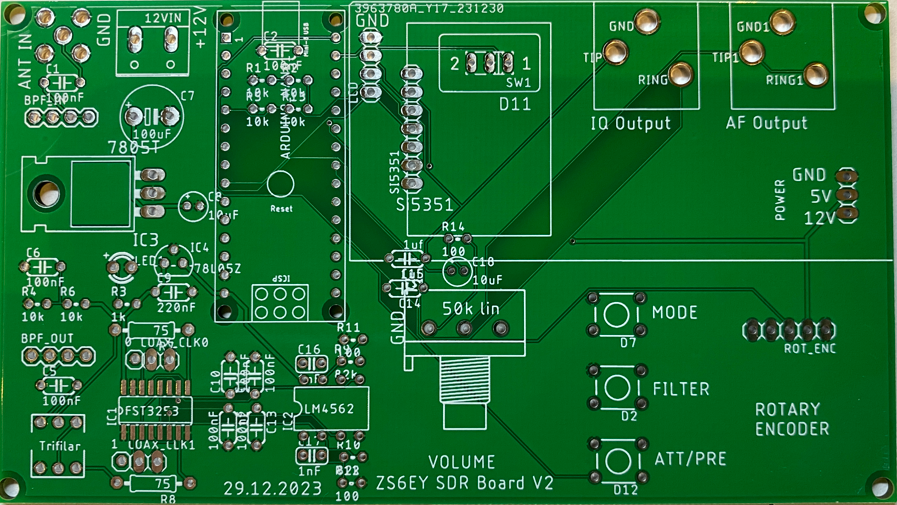

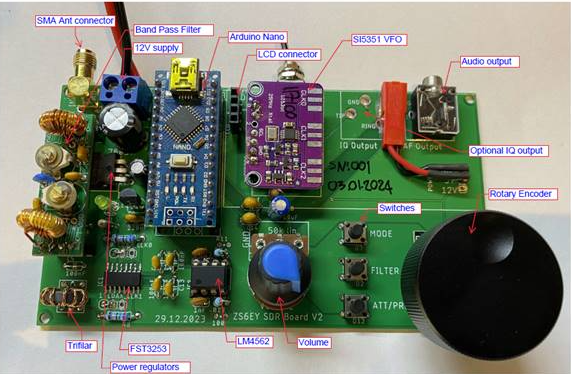

This SDR receiver, built by ZS6EY, is a home-brew software defined HF receiver based on the uSDX design, tuning 3.5 to 30 MHz on LSB and USB and sensitive enough for FT8 decoding. An Arduino Nano does the signal processing, with an Si5351 local oscillator, an FST3253 multiplexer and LM4562 op-amp quadrature detector, a 16×2 LCD and four digital filters, and its I/Q output can also feed a PC sound card. Club members can download the write-up with circuit description, circuit diagram, parts list and construction notes.

https://www.eytraker.com/SDR.htm
