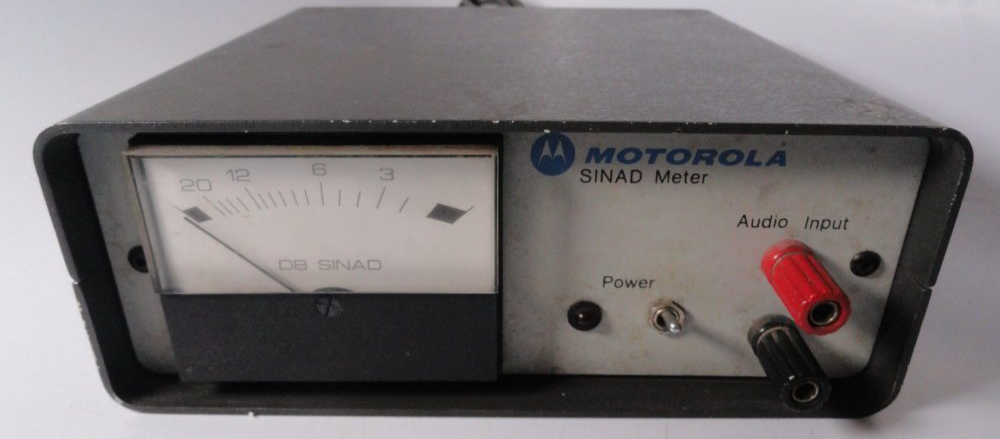

Original but discontinued SINAD meter.
Project #18 · Member project

Sinad Meter

Ronald ZS6RVC · February 1988
Category
Test gear
Version
—
Status
—
Difficulty
—
Built by members
0

About this build

The Sinad Meter project is based on the Motorola R-1013A SINAD meter, a distortion meter for making SINAD measurements on radio receivers and aligning them, built by ZS6RVC. Two cascaded AGC amplifiers hold the receiver’s audio at a constant level for inputs from 40 mV to 10 V RMS, a 1,000 Hz band-reject filter removes the test tone, and the remaining noise and distortion drive a meter calibrated directly in SINAD, accurate to 1 dB. Club members can download the scanned 11-page Motorola manual.

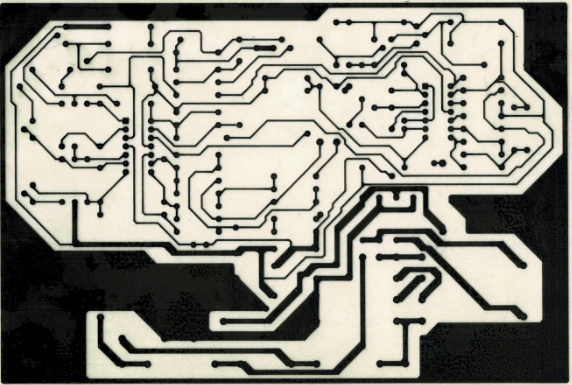

The ArtWork for Pcb is available from Ronnies Radio Shack.
The ArtWork for Pcb is available from Ronnies Radio Shack.
