Project #61 · Club build
uSDX QRP Transceiver
PE1NNZ & ZS6RVC · April 2021
Category
Transceivers
Version
—
Status
—
Difficulty
—
Built by members
0
About this build

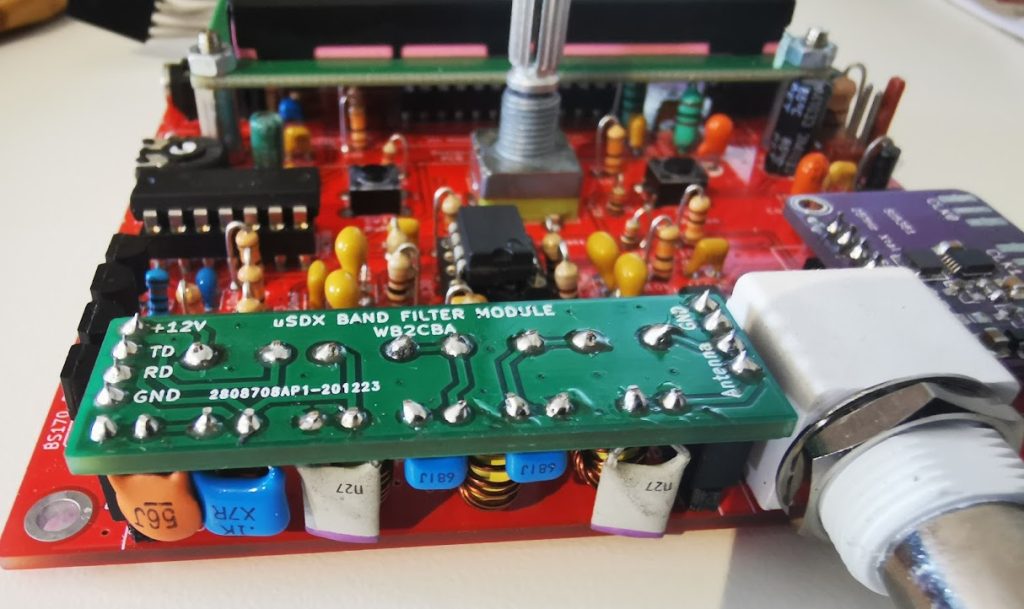

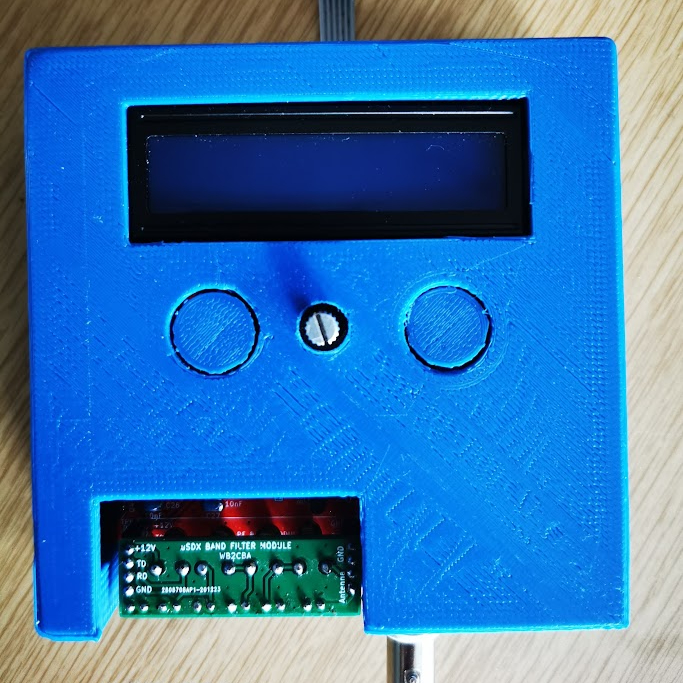

This uSDX QRP transceiver is an Arduino-based SDR all-mode HF transceiver designed by PE1NNZ and built by ZS6RVC. It covers 80 m to 10 m with up to 5 W PEP on SSB, plus CW and, with a PC, digital modes such as FT8. An ATmega328P and SI5351 generate SSB in software for a class-E BS170 amplifier, with a plug-in filter module per band. Club members can download the April 2021 ZS6TJ Calling build article with parts list, assembly steps and menu settings, plus a second build report.


https://www.pcbway.com/project/shareproject/uSDX___An_Arduino_Based_SDR_All_Mode_HF_Transceiver.html
