Project #41 · Club build
APRS TinyTrack
ZS6TJ & ZS6RVC · Early 2001
Category
Digital
Version
—
Status
—
Difficulty
—
Built by members
0
About this build

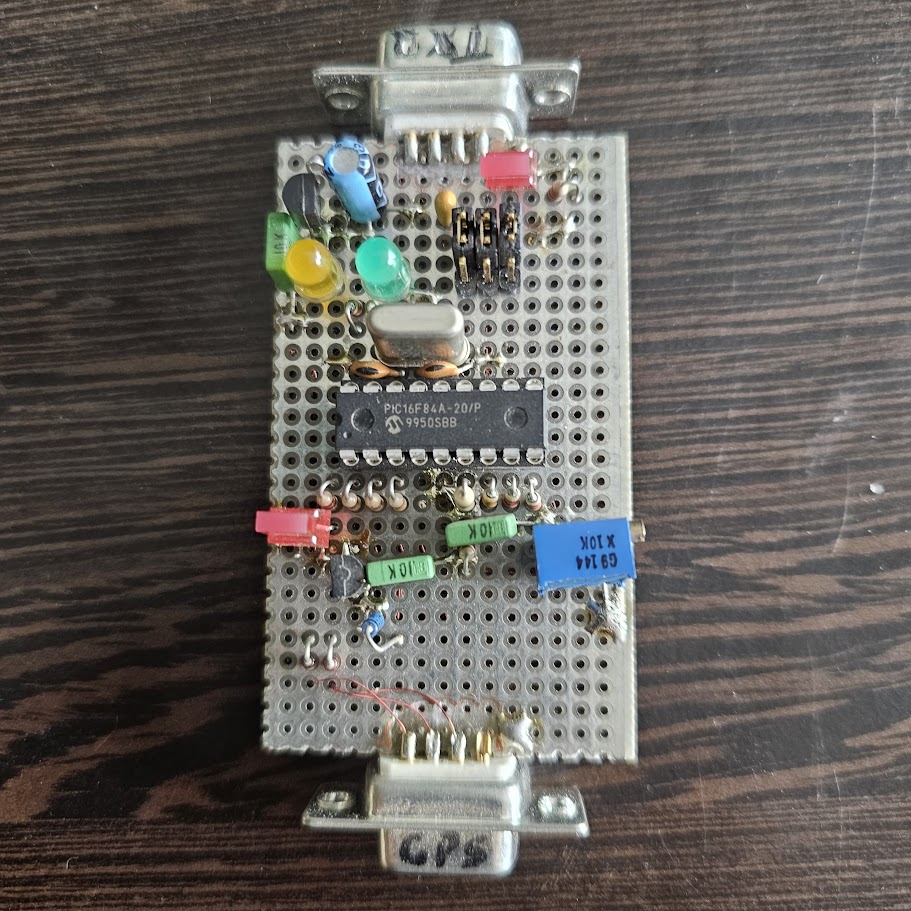

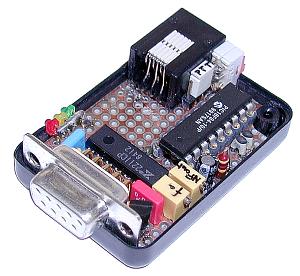

The APRS TinyTrack is a prototype GPS tracker built by ZS6TJ and ZS6RVC, based on a published variant of the Byonics TinyTrak. It decodes NMEA position data from a GPS receiver and generates a 1200 bps packet radio signal that goes straight into a transmitter, with no TNC needed, though it cannot decode received APRS. A PIC16F84-10/P microcontroller does the work, with speed-dependent beacon rates and an optional XR2211 carrier-detect circuit. Club members can download the source article covering the circuit, power supply, construction, programming and adjustments.
