ASDS Digi-IF For digital modes

ZS6SNY & ZS6TJ · March 2011
Category
Digital
Version
—
Status
—
Difficulty
—
Built by members
0

About this build

The ASDS Digi-IF is an interface for digital modes that connects a transceiver’s audio and PTT to a computer over USB, with a header for a Raspberry Pi, built by ZS6SNY and ZS6TJ. The circuit diagram, drawn by ASDS (Pty) Ltd, shows a PCM2906C USB audio codec, audio in and out jacks with level presets, an LM358 VOX circuit and a transistor-driven relay for PTT, with a standalone VOX mode. Club members can download the interface circuit diagram.

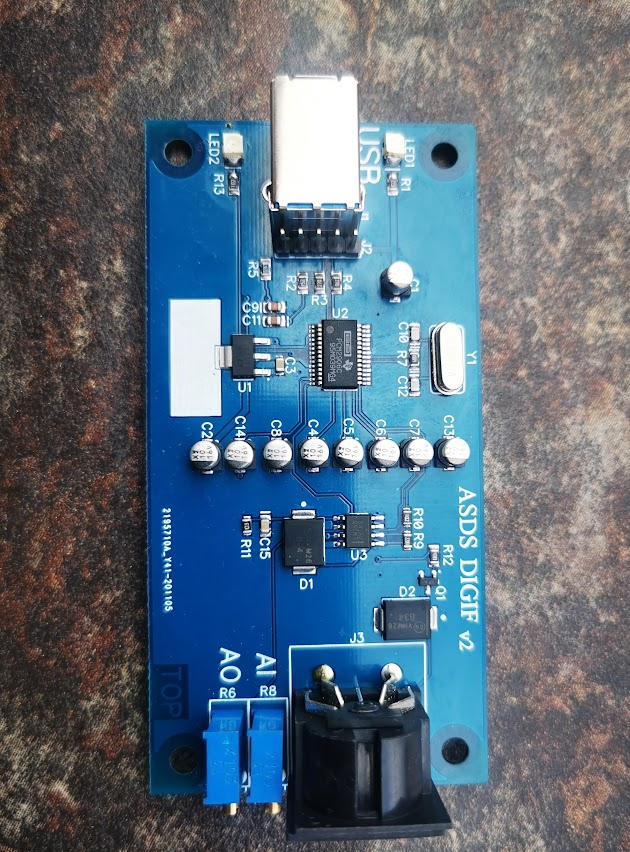

Version 1.0 Inside with space for Raspberry-PI.
Version 1.0 Inside with space for Raspberry-PI.

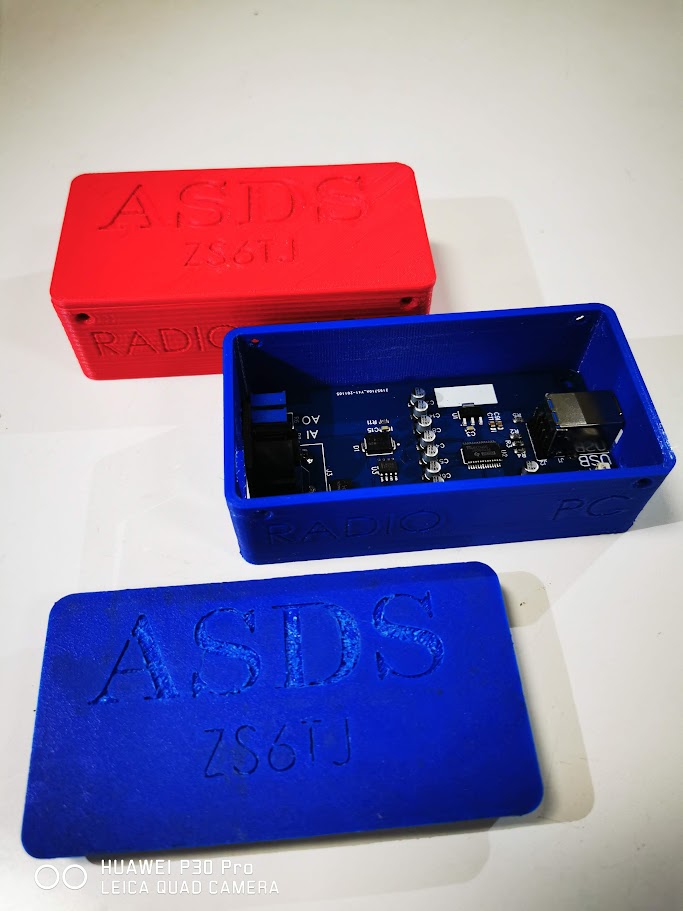

Version 2.0 With USB port & box.
Version 2.0 With USB port & box.
ASDS Digi-IF For digital modes

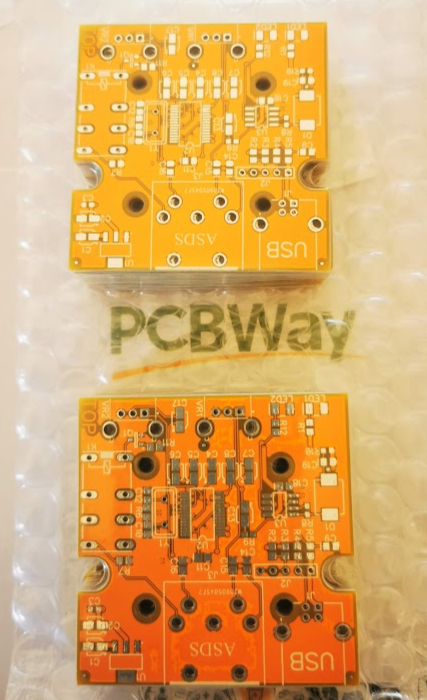

Version 3.0 will be released soon in 2025.
Version 3.0 will be released soon in 2025.

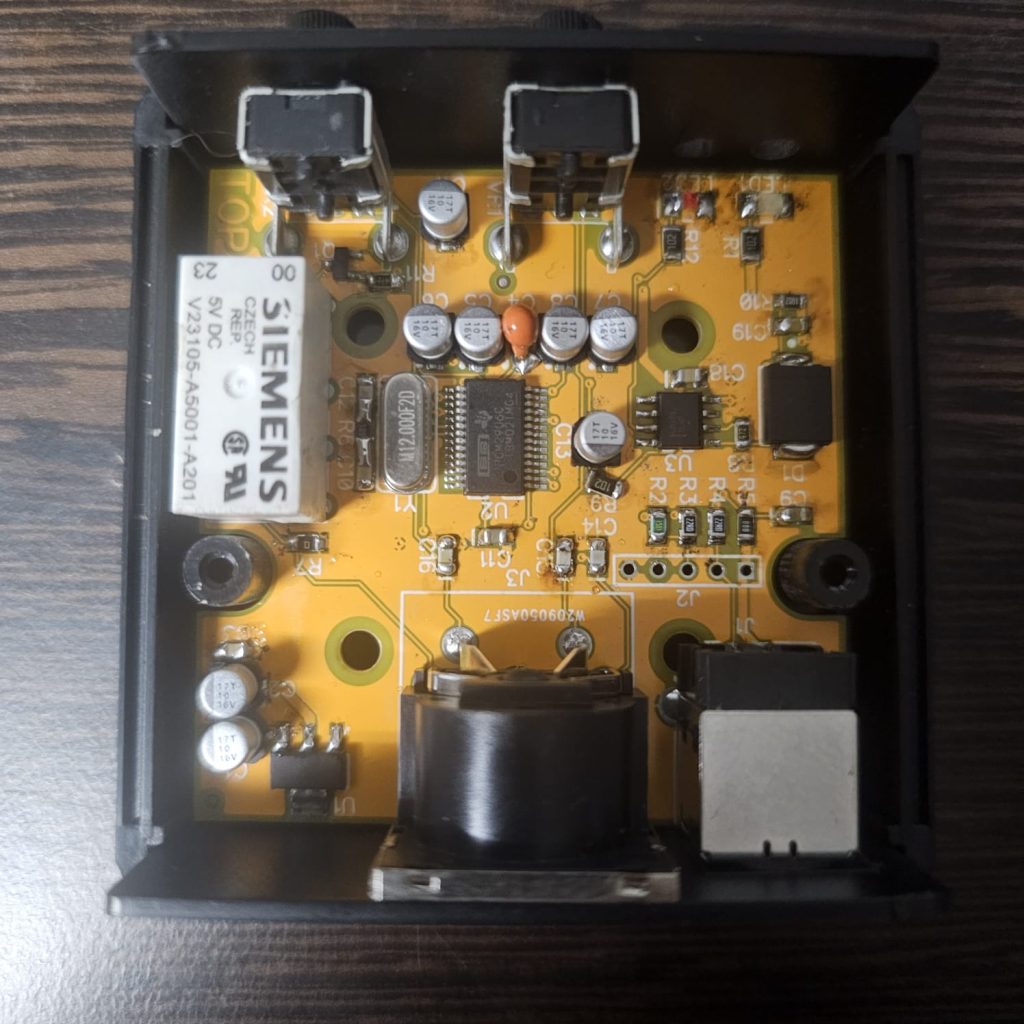

Completed and boxed.
Completed and boxed.
