Hex-Beam
Project #78 · Club build

Hex-Beam

ZS6OW & ZS6RVC, for ZS6TJ · December 2022
Category
Antennas
Version
—
Status
—
Difficulty
—
Built by members
0

About this build

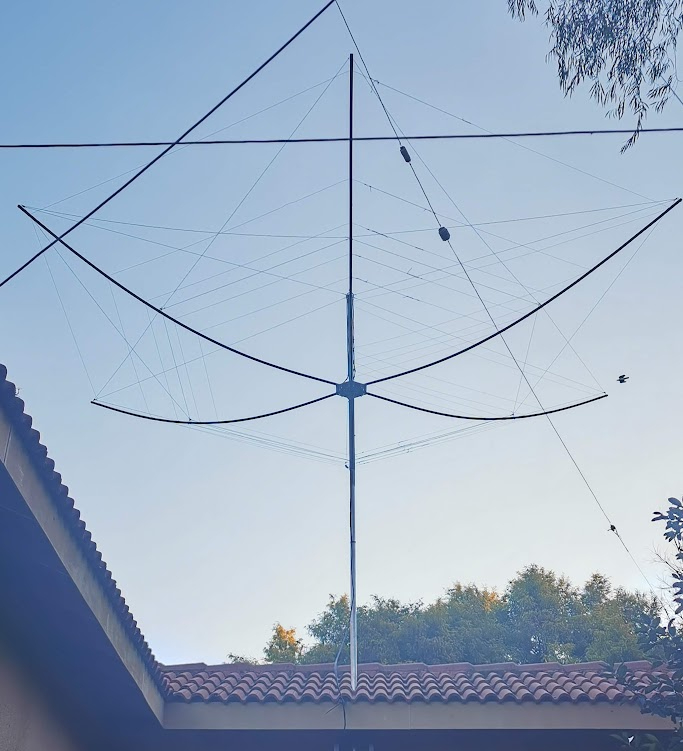

The Hex-Beam is a five-band HF beam antenna for 20, 17, 15, 12 and 10 m, built by ZS6OW and ZS6RVC for ZS6TJ and based on the YI1QEA hexbeam design. To keep costs down, the fibreglass ribs were replaced with 20 mm PVC conduit inside 25 mm conduit, with split pins as wire anchor points and the RG213 feedline fixed to the centre post with brass bolts. Club members can download the article with the dimension chart, element wire lengths, construction notes and photos.
