Project #40 · Member project

Paddle Keyer

IK0WRB & ZS6RVC · April 2024
Category
Digital
Version
—
Status
—
Difficulty
—
Built by members
0

About this build

This paddle keyer is the IK0WRB Keyer version 2.2, an iambic Morse keyer for a two-paddle key, designed by IK0WRB and built by ZS6RVC. It uses a Microchip PIC16F84 with a 2 or 4 MHz crystal, runs from 3.5 to 5 V at under 30 mA and sleeps at under 10 microamps. Speed is adjustable from 1 to 98 wpm, with weighting, an EEPROM message memory, CQ and beacon modes and an audio monitor. Club members can download the circuit, components list and operating instructions.

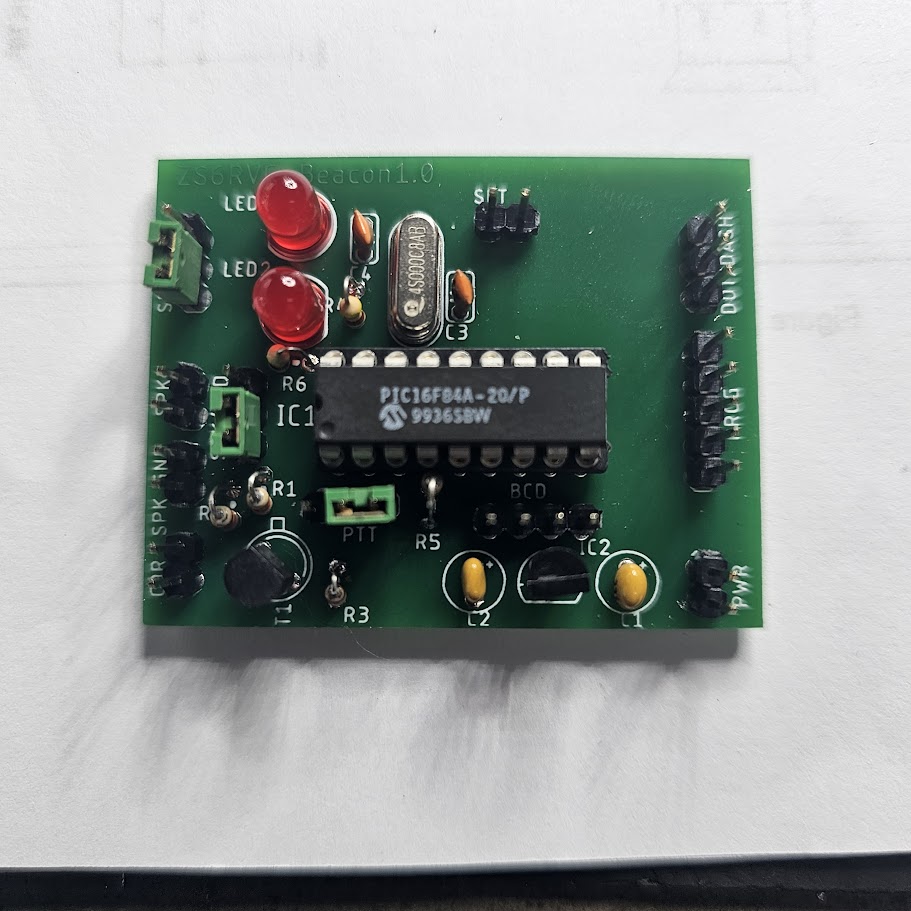

Beacon PCB used for Keyer.
Beacon PCB used for Keyer.
